UNILUX PureLine integral windows

Minimalist design
meets optimal
light penetration

The UNILUX PureLine integral window impresses with its slim frame and great appearance. The synthesis of aesthetics and technology for contemporary architecture.

The UNILUX PureLine integral window defines elegance and innovation in the field of modern architecture. Developed for architects and builders who place the highest demands on design and functionality, this window system impresses with a variety of special features.
  • Greater
    light
    penetration
  • Identical external appearance for sashes
    and fixed glazing
  • Flush
    interior
    option
  • Highly weather-
    resistant aluminum
    coating option
Detailed view of installation situation inside UNILUX PureLine integral window


A special aesthetic

The concealed sash, with its very discreetly visible, sleek leaf frame in black, merges seamlessly into the architecture and thus creates a special aesthetic.

When viewed from the exterior, the sash profile is practically invisible, placing even greater emphasis on the glass surfaces. This minimalist design comes hand-in-hand with even greater light transmittance and hence, a further improved living atmosphere.

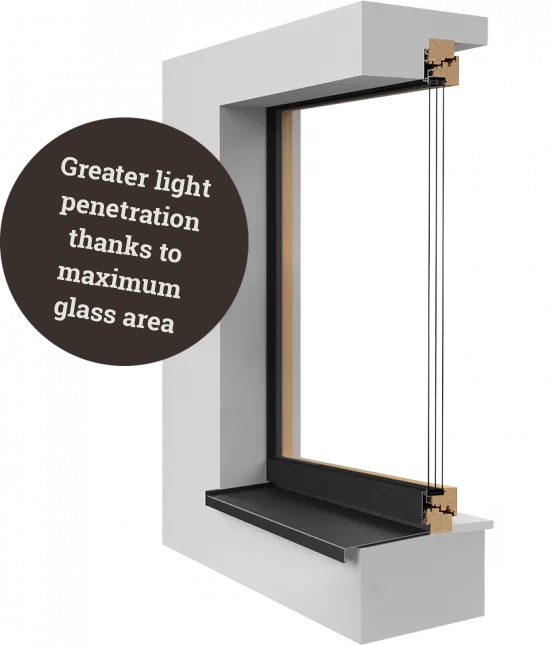

3D model of the installation situation of UNILUX PureLine integral windows

The aluminium frame shell is welded and ground, with no visible joints. This not only provides for a robust construction with longlasting corrosion protection, it also underlines its avant-garde character.

UNILUX PureLine integral windows meet the demands of modern architecture with a sophisticated system - for a visionary design that perfectly combines form and function.

Highlights of the UNILUX PureLine integral window:

  • Virtually concealed sash
  • Maximum light penetration & solar energy gains
  • Welded aluminium shell corner joints
  • Perfect integration into modern architecture
  • A wide range of high-technology solutions
  • Same external appearance for sash panels and fixed glazing
  • Optional flush interior with fully concealed fitting
  • Highly weather-resistant aluminum outer surface option on request



Flush
interior (ifb)
Rebated
interior (ifv)
Building depth
113 mm
97 mm
Glass thickness
up to 64 mm
up to 64 mm
Uw
up to 0,75 W/m²K
up to 0,78 W/m²K
Uf
up to xx W/m²K
up to xx W/m²K
Ug
up to 0,5 W/m²K
up to 0,5 W/m²K
Burglary protection
up to class RC2
up to class RC2
Sound insulation
up to 45 dB
up to 45 dB

Window handles –

aesthetically pleasing, comfortable and safe

Our window handles with their delicate, restrained forms create an aesthetic gain in terms of a holistic object design. At the same time, they offer a secure way to lock your windows. Both versions of the handle lock in the 90° position. Handles with operating locks are unlocked by pressing and turning the handle at the same time thanks to their practical one-handed operation.



On the second model, the operating lock is actuated by means of a release button, and the window can be opened or tilted by pressing and turning the handle at the same time. Two-handed operation is required. No key is needed for either version.

The five aluminum models are available in the following colors:

Black, sand-blasted anodized
Medium bronze, sand-blasted and anodized

Interior design variants

The PureLine system fits perfectly into modern buildings and enables a wide range of architecture solutions at the highest technical level: In combination with tilt and - turn/fixed glazing, the different elements combine almost invisibly according to the “Less is more” principle, and are therefore almost indistinguishable. And with the option of integrating the interior of the window flush, you can also create a harmonious look between inside and outside areas.

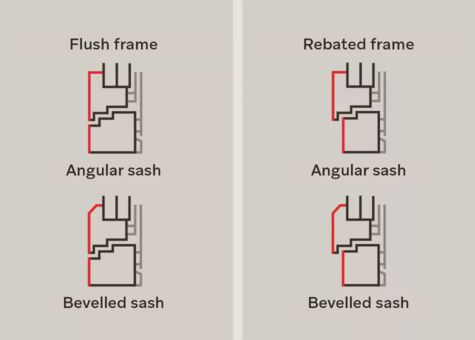

Overview of the design variants of UNILUX PureLine integral windows

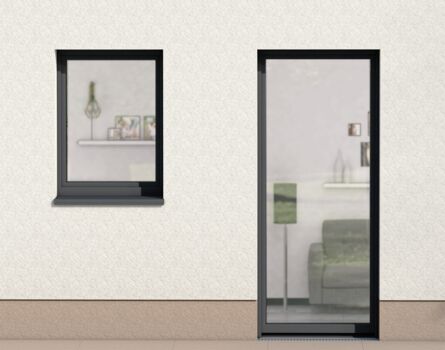

Discover our integral terrace and balcony doors

The UNILUX PureLine system is also available for balcony and terrace doors. Put together the doors and windows of your choice and enjoy comprehensive service including advice, delivery, installation and maintenance from one of our specialist partner companies. Find your regional specialist partner now by zip code or visit one of our UNILUX exhibitions.
